Understanding the mechanics of side-hinged architectural openings requires a detailed examination of their foundational components. Specifying appropriate mechanisms heavily influences structural stability, energy efficiency, and operational smoothness. Building professionals frequently analyze these internal configurations to optimize long-term facade performance across demanding commercial properties and premium residential developments.
To provide reliable functionality, CMECH engineered the L-Series to serve as a cohesive structural framework. This advanced system integrates high-performance materials and precise geometries to support heavy architectural glass. Analyzing this engineered solution reveals how individual components collaborate to elevate overall building envelope integrity.
Core Categories of Casement Window Hardware Parts
The operational success of side-hung sashes depends on four primary component categories functioning in unison. Hinges bear the physical load, operators manage the movement, stays limit the swing, and locks secure the perimeter. A failure in any single category compromises the entire structural assembly.
Identifying these distinct casement window hardware parts helps facility managers and developers execute targeted maintenance. Rather than replacing entire window units, professionals can specify targeted upgrades for worn sections. This methodical approach extends the usable lifespan of valuable architectural investments significantly, promoting sustainable facility management.
High-Capacity Hinges and Structural Load Management
Hinges serve as the critical load-bearing foundation for the active sash. They must support substantial gravitational forces while enabling smooth lateral rotation. Standard designs often struggle with heavy insulated glass, leading to progressive sash sag and compromised weather seals over time. Understanding load distribution is vital for preventing structural failure.

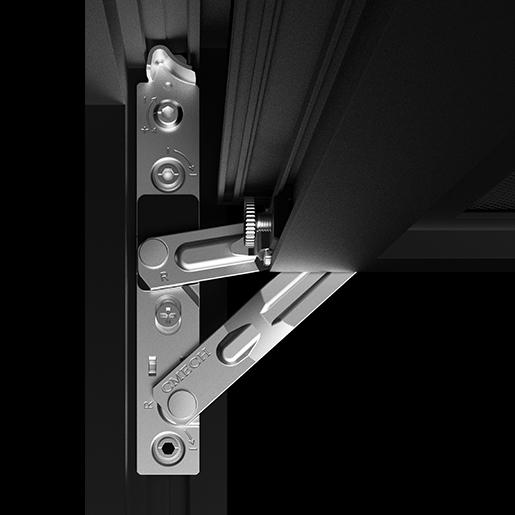

The CMECH L-Series addresses these challenges with a milled-free built-in hinge geometry optimised for standard 20 mm Euro‑groove and compatible European‑profile channels. This component features a patented anti‑sag structure incorporating a U‑shaped bent reinforcement‑plate. Secured by six solid‑rivets, it safely delivers a rated 50 kg load‑capacity under compliant profile and fabrication‑conditions.
Operators and Advanced Drive Gear Engineering
Operators and internal drive gears translate manual handle rotation into systemic locking actions. These concealed mechanisms require high precision to prevent operational friction and binding. Consistent torque transmission is essential for smooth daily use across varied commercial and residential applications.
Advanced systems utilize resilient materials to maintain internal mechanical reliability. The L-Series drive gear is crafted from high-quality carbon steel enhanced by a nano-blue surface treatment. This specialized coating delivers elevated corrosion resistance, ensuring the concealed mechanisms remain functional even in challenging environmental conditions.
Furthermore, the drive mechanism incorporates an integrated reversible anti-deviation nut. This specific engineering detail maintains precise positioning during operation, actively preventing unwanted lateral swing. Such precise manufacturing minimizes tolerance-stack drift, resulting in consistent lock-point engagement across the entire window frame.
Friction Stays within Casement Window Parts Assemblies
While hinges provide primary support, friction stays are vital casement window parts that govern the opening angle. They apply controlled resistance, allowing users to position the sash securely for ventilation without fear of sudden closure. This controlled resistance is particularly important on exposed building elevations where unpredictable drafts occur frequently during daily operations.
Heavy-duty stays must withstand dynamic wind loads when the window remains open. Utilizing robust stainless steel components ensures these arms resist bending or deformation under pressure. Reliable friction stays protect both the glass panel and the surrounding frame from impact damage during unexpected weather events. Proper specification mitigates the risk of catastrophic hardware failure in high-rises.
Multi-Point Locks and Ergonomic Handle Design
Securing the sash requires a distributed approach to locking pressure. Multi-point locking mechanisms engage at several locations along the frame simultaneously. This synchronized action pulls the glass panel tightly against the weather stripping, mitigating drafts and enhancing physical security for the building occupants.
The handle serves as the primary user interface for these complex locking systems. The L-Series handle utilizes a stable triangular-structure principle combined with aerospace-grade connecting seats. This thoughtful architectural design reduces movement-induced wear, ensuring a consistently firm feel over decades of continuous use.
To support this structural-stability, the handle upgrades from the conventional 7 mm industry‑standard spindle to a robust 10 mm variant. This larger diameter delivers exceptional torsional‑rigidity. A properly‑specified spindle enables highly‑efficient transfer of rotational force to the transmission‑rod and minimises torque‑loss caused by torsional deflection.
Weather Sealing and Performance Ratings
The coordination between locking mechanisms and perimeter seals determines the overall environmental efficiency of the installation. High-quality casement window hardware parts draw the sash inward with precise compression. This systematic pressure ensures rubber gaskets deform correctly to block moisture and unconditioned air effectively, which directly contributes to the building’s thermal performance.
The cohesive engineering of the L-Series achieves impressive structural-performance metrics. When properly configured and paired with compliant profiles, gaskets and professional fabrication, the complete system supports watertightness up to 700 Pa and air permeability at Grade 8. Furthermore, it delivers reliable wind‑load resistance up to 5 000 Pa, helping meet stringent commercial building‑performance requirements.
Sourcing Integrated Systems for Commercial Developments
Standardizing on a cohesive hardware ecosystem streamlines the specification process for large-scale architectural projects. When hinges, operators, and locks share the same engineering language, installation complexities decrease. Sourcing from a single specialized provider mitigates the compatibility risks associated with mixing disparate component brands.
The CMECH L-Series demonstrates the value of this integrated approach. It efficiently accommodates sash dimensions from 400 mm to 750 mm in width and 450 mm to 1,800 mm in height. This broad applicability allows developers to standardize their procurement strategy while outfitting diverse architectural openings.
Ultimately, selecting premium casement window parts protects the underlying property investment. High-performance materials such as 304 stainless‑steel load‑bearing components up to 4 mm thick ensure enduring load-bearing capabilities. By prioritizing meticulously engineered systems, architects and builders deliver safe, functional, and visually cohesive environments for modern building occupants, establishing a legacy of quality and operational excellence for the property.
All hardware specifications, performance data and material parameters are sourced from CMECH official product manuals and certified test reports.
